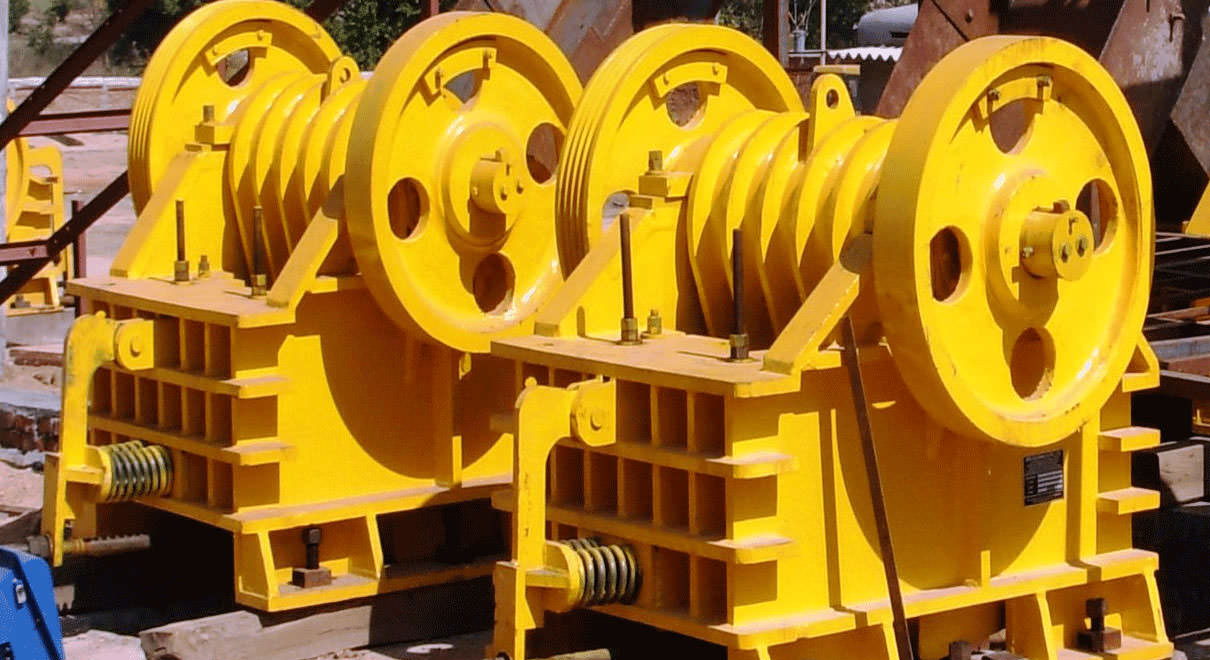

SINGLE TOGGLE JAW CRUSHER


CPC SINGLE TOGGLE JAW CRUSHERS are high performance machines built for heavy and continuous duty. Our single toggle machines boast BEST IN CLASS PRODUCTION along with very HIGH RELIABILITY.




SALIENT FEATURES:-



LOW MAINTENANCE COST: This range of granulators are HIGHLY RELIABLE and ROBUST. They have been designed for CONTINUOUS TROUBLE FREE OPERATIONS.



HIGH PRODUCTION: These machines are characterized by a STEEP TOGGLE ANGLE leading to an AGGRESSIVE CRUSHING ACTION. Our customers confirm that HIGH PRODUCTION is the most satisfying characteristic of this range of crushers.



HEAT TREATED HARDENED ALLOY STEEL SHAFT: The shaft becomes ultra-strong and wear-resistant.



LARGE OVERSIZED BEARINGS: So that the machine is able to handle shock loads, the bearings used are of much higher capacity than required by a similar sized machine.



PERFECT BEARING ALIGNMENT: The housings are bored in the Horizontal Boring Machines so that they are precisely aligned. Lapping is performed upon each housing to ensure full contact of the bearing and the housing.



STRESS RELIEIVED BODY AND PITMAN: All fabricated parts are STRESS RELIEVED in the HEAT TREATMENT FURNACE to remove weld stresses. This process makes the welding strong and the structure more stable.



»CPC Equipments Compay Brochure - English (3614 kb)

»CPC Equipments Single Toggle Jaw Crusher Product Leaflet - English (562 kb)

TECHNICAL SPECIFICATIONS

 MODEL SIZEMAX FEED
SIZE
OUTPUT
SIZE
MINIMUM
JAW
SETTING
CRUSHING CAPACITYMOTOR HPENGINE HPRPM
 HARD
 STONE
 SOFT
 STONE
 HARD
 STONE
 SOFT
 STONE
214514" x 05"4"20mm1/2"6 TPH8 TPH20 HP25 HP325340
2165MTH16" x 06"5"20mm1/2"8 TPH10 TPH25 HP30 HP325340
21610MH16" x 09"8"20mm1/2"10 TPH12 TPH30 HP35 HP325350
21610AH16" x 10"8"75mm2-1/2"15 TPH20 TPH30 HP35 HP300325
21611MP16" x 11"9"75mm2-1/2"17 TPH30 TPH35 HP40 HP250275
2006MTH20" x 06"5"20mm1/2"10 TPH12 TPH30 HP35 HP325340
1808 REGULAR18" x 08"7"20mm1/2"10 TPH12 TPH30 HP35 HP325350
1808 HEAVY18" x 08"7"20mm1/2"12 TPH15 TPH40 HP45 HP325350
2008 REGULAR20" x 08"7"20mm1/2"11 TPH13 TPH35 HP40 HP325350
2008 HEAVY20" x 08"7"20mm1/2"14 TPH17 TPH40 HP45 HP325350
2010AH20" x 10"8"75mm2-1/2"18 TPH25 TPH35 HP40 HP275300
2012AH20" x 12"10"125mm4-1/2"20 TPH30 TPH35 HP40 HP250275
3006MTH30" x 06"5"20mm1/2"15 TPH18 TPH45 HP55 HP325340
3606MTH36" x 06"5"20mm1/2"16 TPH20 TPH50 HP60 HP325340
3606ST36" x 06"5"20mm1/2"18 TPH22 TPH50 HP60 HP325340
3608ST36" x 08"7"40mm1"30 TPH35 TPH60 HP70 HP325350
4206ST42" x 06"5"20mm1/2"22 TPH28 TPH60 HP70 HP325350
4208ST42" x 08"7"40mm1"35 TPH40 TPH70 HP80 HP325350
THE CRUSHING CAPACITIES MENTIONED IN THE TABLE ABOVE ARE APPROXIMATE AND ARE BASED ON CONTINUOUS REGULAR FEED OF STONE OFULK DENSITY 1.6 TON/ CU-M. THE CAPACITIES MENTIONED ABOVE MAY VARY BASED ON THE TYPE OF FEED MATERIAL, CLAY AND MOISTURE CONTENT, BULK DENSITY, OUTPUT SIZE AND FRACTURE PROPERTIES OF THE BULK MATERIALS
